There’s no time like the present to get out and enjoy shows, cruise-ins, and races. And by enjoy the races, we mean actually go out and race.

If you’ve never gone racing—or if you’ve never fully understood bracket racing—this post is intended to nudge you toward the starting line. Truth is you don’t need a lot of money or special equipment to go bracket racing—all you need is a safe car, a local track, and the desire to learn. This post will teach you the basics of bracket racing—what it is, how a race is run, how a track is set up, and more.

PlayPrev|Next
typical quarter-mile drag race track illustration diagram
NHRA timing drag racing christmas tree diagram
drag race time slip illustration
vintage oldsmobile 88 sedan on drag strip
muscle car doing a burnout at the track

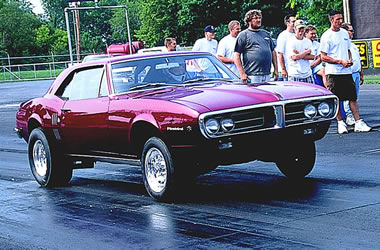

1967 Pontiac firebird drag car launching at track

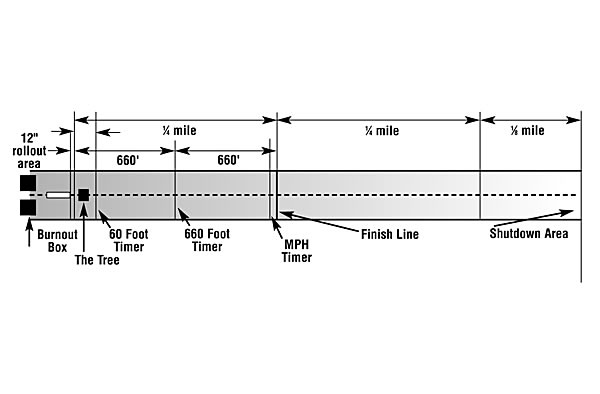

This is an illustration of a typical quarter-mile drag race track (eighth-mile tracks are similiar).

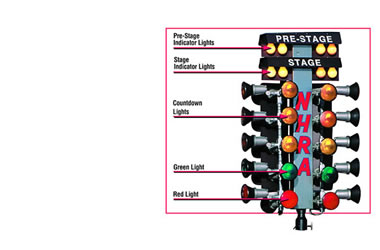

This is what a typical countdown light, or Christmas Tree, setup looks like.

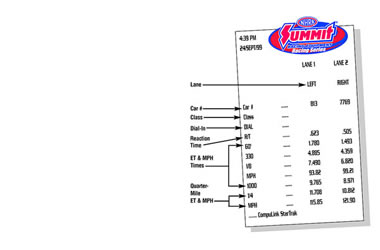

This is what a time slip looks like.

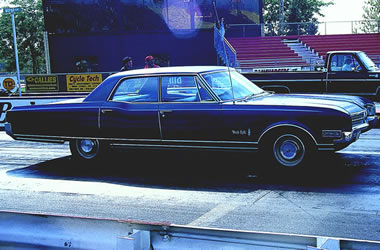

Yeah, this big Olds 98 is the proverbial grandma car and is every bit as slow as you think it is. But thanks to the handicapping feature of bracket racing, you can win—and win often—in a car like this. The key to winning with a slow car is consistency. Practice your launch technique, hone your reaction times, and get your driving skills to the point where you can hit your dial-in every pass and you can clean up in the brackets.

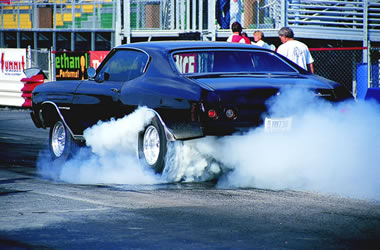

The number one temptation for a new bracket racer is to do a nasty, boil ’em-to-the-wear- indicators burnout. Word of advice: leave those burnouts to the big boys in the pro classes. All you really need is a quick burnout to put some heat in the tires or slicks and clean any debris out of the tread. The best way to do this is to pull the car forward until the rear tires are just at the edge of the water. This will put enough water on the tread to get the tires to spin and warm up. Anything more is just a waste of perfectly good rubber.

The best way to learn how bracket racing works is to watch other racers compete. Take note of how the winning drivers approach their burnout, how they stage and launch, and how they drive down the track. Don’t be shy about asking questions, either. Most racers will be happy to talk about setting up a car or their driving technique. You can use their experience to become a better racer.

track thumbnailtiming_tree thumbnailtime_slip thumbnailtech-ma00-bracket-04 thumbnailtech-ma00-bracket-03 thumbnailtech-ma00-bracket-10 thumbnail
right

A bracket drag race is a straight-line acceleration contest between two cars (usually starting at different times—more on that in a minute) from a standing start over a specified distance, usually a quarter-mile or an eighth-mile.

Racers line up in front of an electronic countdown device nicknamed a Christmas Tree (or just the Tree). When the cars leave the starting line, electronic timers record how long it takes each one to reach the finish line. This is called elapsed time, or ET for short. That is why bracket racing is also known as ET racing. Top speed is also recorded, but does not determine a winner in a bracket race.

The Track

Before we get into the nuts and bolts of an actual race, let’s explore the nuts and bolts of where you’ll be competing—the track. Most tracks are a quarter-mile in length; but there are a good number of eighth-mile tracks too. Refer to Slide #1 in the Slide Show to see where the following areas are located:

Burnout Box—the area just before the starting line that is sprayed down with water so you can do a quick burnout to warm up the tires or slicks for better traction and get rid of any debris lodged in them.

60-Foot Timer—Measures the time it takes the car to cross the first 60 feet of the track. This shows you how well the car launches, which affects your elapsed times.

660-Foot Timer—Measures elapsed time at the halfway point of a quarter-mile track. At some tracks, speed (in miles per hour) is also recorded. Some tracks also have timers at 330 and 1,000 foot intervals.

Mile-Per-Hour Timer—Also known as the speed line, this timer is located 66 feet before the finish line. It records the car’s average speed between it and the finish line. This is the mile per hour figure on your time slip.

Finish Line—When you cross the light beam at the end of the quarter-mile, you stop the ET clock. The amount of time (in seconds) between when the timer was activated and when it stopped is the ET figure on the time slip.

Shutdown Area—The area past the finish line, usually a quarter-mile or more in length, where you can safely slow the car down to take the turnout to the time slip booth. If something goes wrong and you can’t stop the car, most tracks have a sand trap, net, or other setup at the end of the shutdown to stop you.

The Tree

A drag race starts in front of the Christmas Tree. In simple terms, the Tree is a set of vertical lights that gives the driver a visual countdown to the start of a race. The lights are as follows from top (see Slide #2 in the Slide Show for a visual reference):

Pre-Stage Indicator Lights—Yellow bulbs that indicate that you are close to the starting line and should be ready to stage.

Stage Indicator Lights—Second set of yellow bulbs that indicate you are fully staged and ready to race. The bulbs are triggered when the front wheels cross a beam of light from a set of photo cells. These cells trigger the timer when the car leaves the light beam.

Countdown Lights—Amber floodlights that count down to the green light. There are two types of countdowns, or starts. The .500 or Full Tree start used in bracket racing flashes one light at a time, with a .500-second difference between the last amber light and the green light. The .400 or Pro Tree for heads-up and professional classes flashes all three lights simultaneously with a .400 second difference between the amber and green lights. Typically, you want to leave when you see amber—the top bulb, middle, or last, depending on your car or class.

Green Light—This is the one you’re waiting for. When it flashes, it means you’re late if you’re not moving yet! This point of the run is called the launch.

Red Light—This light will flash if you break the stage beam before the green light is activated. Known as redlighting, this action automatically disqualifies you and gives the win to your opponent.

This brings us to reaction time, which is how quickly a racer can get off the starting line when the light goes green. Better known as cutting a light, a quick reaction time will give you a big advantage over your opponent, especially if you are running the slower car. The starting line is where most bracket races are won or lost, so time practicing your staging and launching techniques is time well spent.

1966 chevelle launching at a dragstrip
(Image/Jeff Smith)

Running a Bracket Race

Before a bracket race can start, each car must determine what time to “dial.” To figure out an accuate dial, a racer needs to use time trials to determine the elapsed time they think their car will run.

Beginning racers usually base their dial-ins on a few passes down the track. For veteran racers, a dial-in is serious business, based on years of experience and countless runs. A good bracket racer can hit on or very close to their dial-in almost every time.

When two cars are matched up for a race, the dial-ins are compared; the slower car is given a handicap, or a head start equal to the difference between the dial-ins. To win, you need to run closer to your dial-in than the other guy. There are three winning scenarios:

  • Run as close to your dial-in as possible without going quicker, or breaking out
  • If both cars run faster than their dial-ins (called running under or breaking out), the racer closest to their dial-in wins

The Time Slip

After you make a run, the guys in the little booth at the end of the track will hand you a piece of paper with numbers all over it. This is the time slip. It provides a wealth of information about your pass—how well you launched, how quick and fast you went at various points on the track, and your elapsed time and top speed. If you were running against an opponent, the time slip tells you how they did, too.

The sample quarter-mile time slip in Slide #3 in the Slide Show illustrates the following terms:

Lane—Shows which lane you are in
Car Number—Most cars are assigned numbers at official races
Class—Marked if running in an official race. Not used for test and tune sessions
Dial-In—The elapsed time you predicted your car would run
Reaction Time—How quickly you reacted to the green light on the Christmas Tree. In the sample time slip the Tree was set for a Sportsman (.500 second) start
60′, 330′, 1/8, MPH, and 1,000 Foot Times—These figures are the elapsed times measured at the 60, 330, eighth-mile (660 feet), and 1,000 foot marks. The MPH number is measured at the 660 foot mark
Quarter-Mile ET and MPH—These are your final elapsed time and top speed numbers—the ones that count!

How Do I Start?

Now that you have an idea on how bracket racing works, take a trip to your local track—and just watch. Pay attention to how the cars launch, how the Christmas Tree works, and what racers do in the pit area. Most importantly, ask questions. There isn’t a racer we know of who doesn’t love to talk about their car and how they approach a race. Most racers will be happy to give you pointers on improving your technique—and that will teach you volumes on how to race.

After spending time watching bracket racers at work, it’s time to get your feet wet. A great way to do that is at a “test and tune” session at your local track. For a small fee, you can practice your starting line procedure, learn how the car reacts to tuning changes, and make passes down the track without the pressure of racing against someone. Chances are there is a drag strip within a couple hours’ drive. Most tracks are sanctioned by the National Hot Rod Association (NHRA) or the International Hot Rod Association (IHRA); you can locate a track near you by visiting their websites.

We hope this primer helps you understand the basics of bracket racing. One thing we will guarantee: once you make that first run down the track, you’ll be hooked for life!
