Blue Oval Stampede: Unleashing 900+ Horses from a 600 CID Big Block Ford

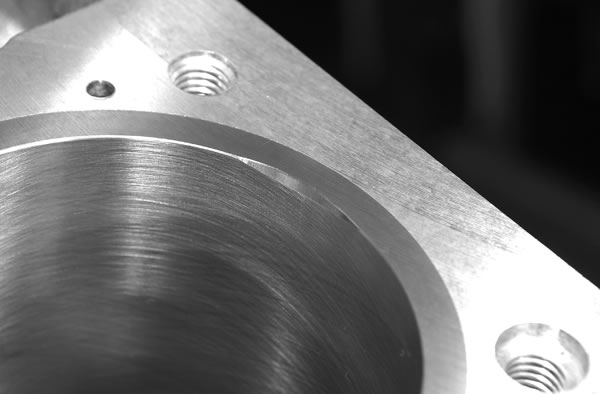

The block comes factory-fitted with .180 inch thick cast iron cylinder liners, which can handle a bore job up to 4.625 inches. Evanuik Racing Engines went with a 4.560-inch bore and 4.500-inch crank stroke to get to 600 cubes. The small chamfer in the liner is called a bore notch. It helps better match the bore to the shape of the combustion chamber in the Trick Flow A460 cylinder head, and unshrouds the valves for improved airflow.

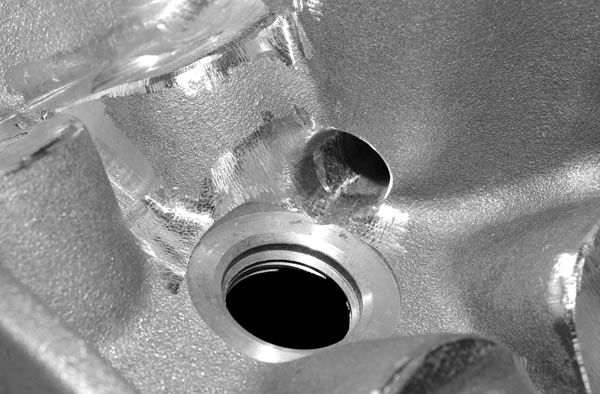

Since the 600 would use a dry sump oiling system, the oil return holes in the lifter valley were enlarged, and the areas leading to them were contoured to promote better oil drainback to the crankcase.

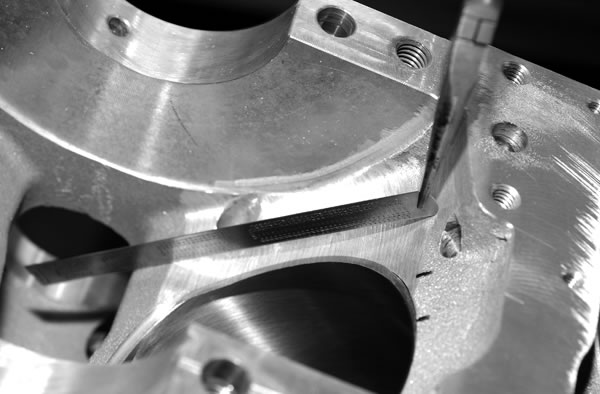

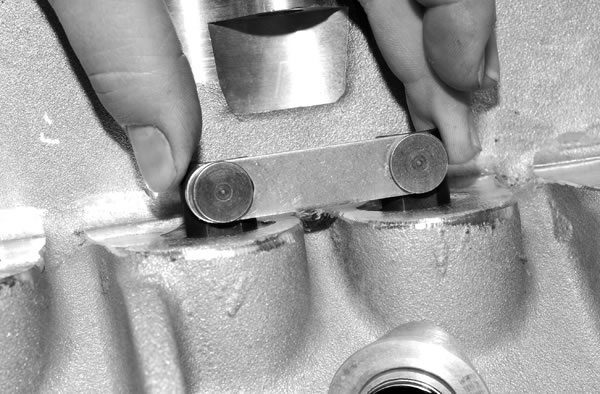

The lifter bores had to be knocked down approximately .150 inch to clear the link bars on the Comp Cams roller lifters. The pushrod notches were also enlarged to make sure there would be no interference problems.

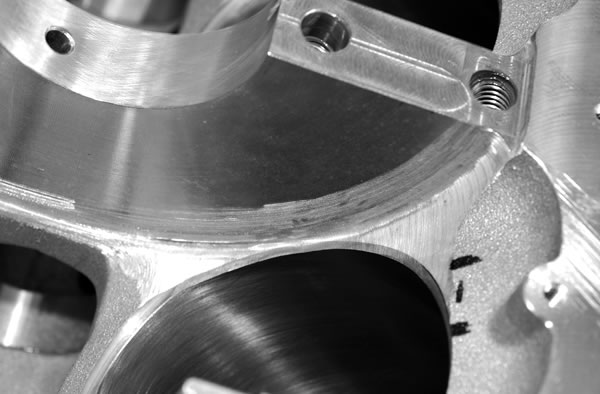

With such a long stroke (4.500-inch vs. stock 460’s 3.850-inch), block clearance problems were a given. Approximately .250-inch had to be machined away from the area around the bottom of the cylinder bores to clear the Crower crank’s counterweights.

The main bearing bulkheads required some minor grinding to clear the Crower crank’s thick counterweights.

The Ford Racing block comes with these four-bolt billet steel main bearing caps. ARP studs are used on the inner holes, with ARP capscrew-head bolts on the outers.

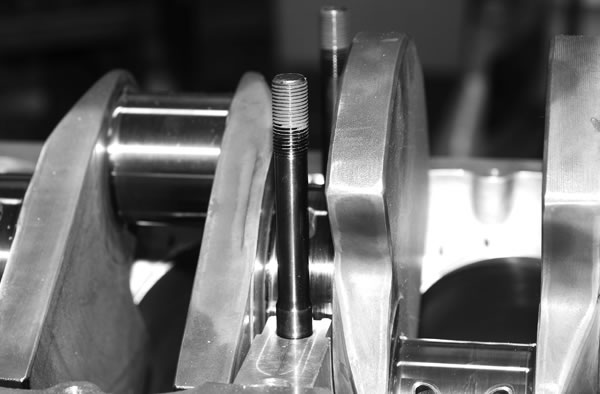

The main cap studs have a unique bottleneck design. The studs bottom on the round end to prevent thread damage and for better torque retention in aluminum blocks.

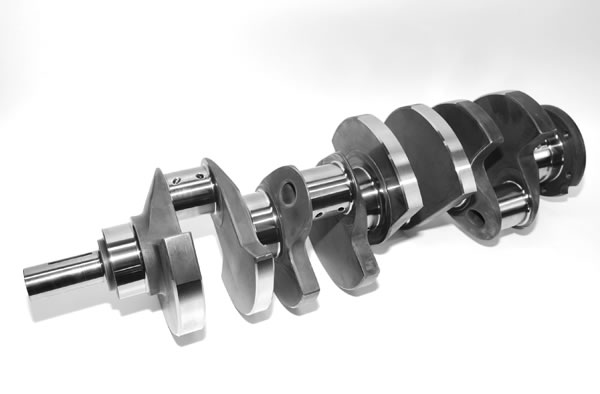

Crower was kind enough to whittle the 4340 billet steel crankshaft for the 600 stroker project. The fully CNC-machined arm is based on the company’s standard 460 crank, so it retains the factory 3.00 inch main journals and 2.20 inch connecting rod journals. Of course, the entire reciprocating assembly was balanced. Don’t ask how many slugs of Mallory metal it took….

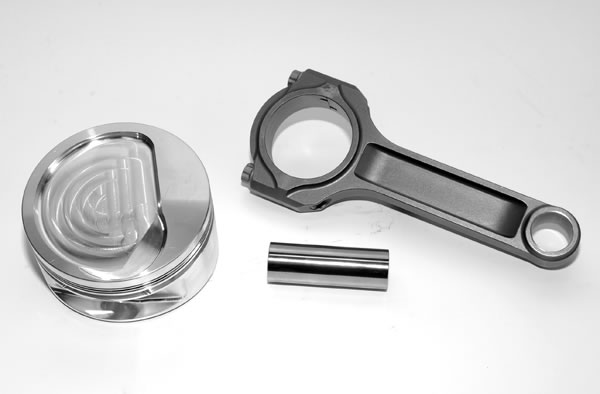

The forged pistons were custom-made by JE Pistons. The dished pistons have a 1.350-inch compression depth; static compression with the 91cc chambers in the Trick Flow A460 heads is around 10.4, just within the limits of 94-octane pump premium. The connecting rods are Crower's Billet Series. The 4340 steel rods are 6.7 inches long, and have additional cam-to-rod clearance machined in for use in stroker combinations.

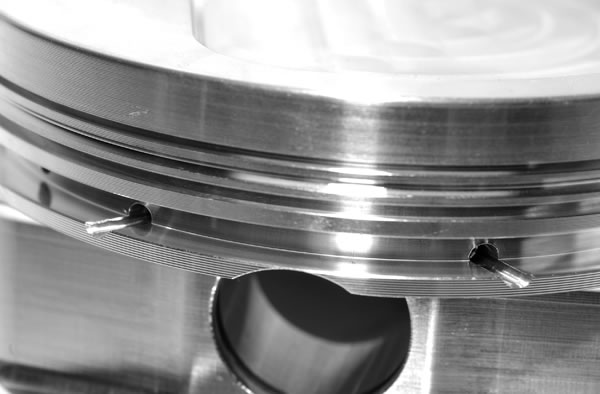

Evaniuk Racing Engines drilled small “troughs” for the double pin oil holes in the oil ring land just above the wristpin bore. The rings themselves are from JE (.043- inch top, 1/16-inch secondary, 3/16-inch oil control).

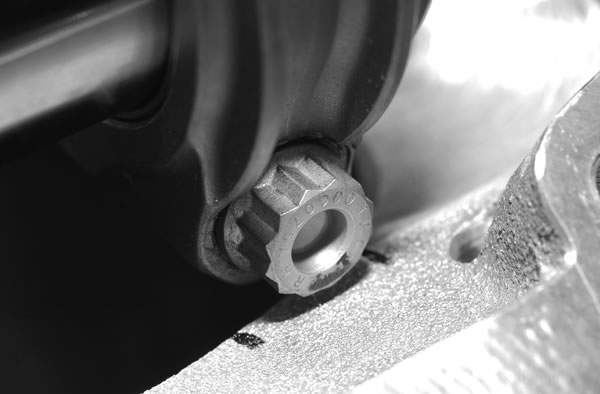

Test-fitting of the reciprocating assembly in the block found a clearance issue with the connecting rod bolts. Time to break out the die grinder..

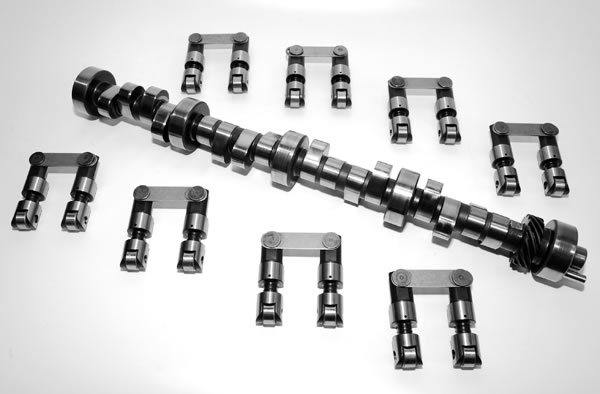

Big cubic inches love big cams, especially when there is a manual transmission to keep things stirred up. This Comp Cams solid roller camshaft specs out like a drag race grind. Duration at .050 is 264 degrees intake/274 degrees exhaust (308/318 degrees advertised); lift is a whopping .751 inches intake/.720 inches exhaust. Fortunately, there are 600 cubic inches to tame this cam for street use.

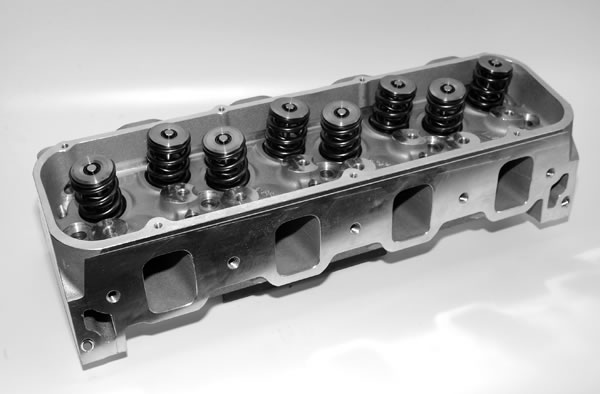

Trick Flow sent a pair of its A460 aluminum cylinder heads. As delivered, the heads have 340cc intake/172cc exhaust ports, 91cc chambers, 2.300-inch intake/1.88-inch exhaust valves, 1.640-inch double valve springs with titanium retainers, and machined valve locks, guideplates, and rocker arm studs.

Jim Evanuik did some basic cleanup on the combustion chambers. He opened up the side walls to match the large cylinder bore for increased air flow. Sharp edges were deburred to help prevent detonation, and the spark plug holes were for better plug firing.

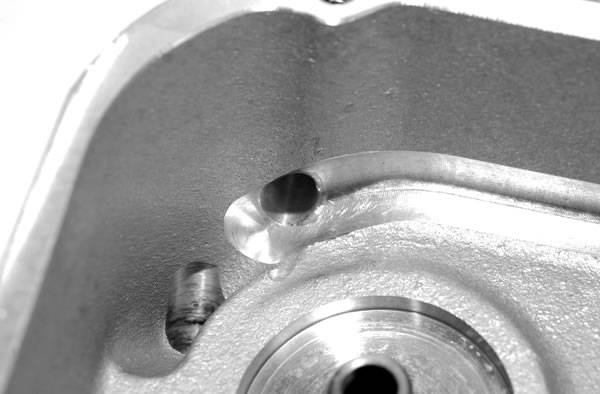

The heads required some modification to work with the dry sump oiling system. An additional oil drainback hole and a milled slot were added to help drain oil more quickly off the top end of the engine and back to the crankcase. That oil is crucial to keeping the main and rod bearings supplied with lubrication.

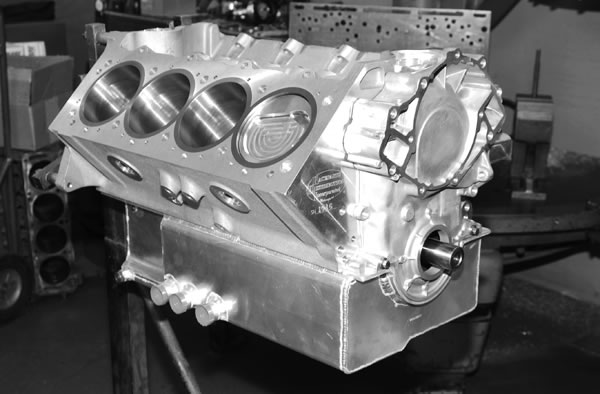

The decision was made to go with a dry sump oiling system for the 600. The overriding reason was clearance. The engine had sit as low in the car as possible for the tunnel ram induction system to clear the stock hood, which in turn created ground clearance issues. Since a dry sump oil pan can be made much shallower than a typical wet sump pan, that clinched the deal. A call to Stef’s Fabrication Specialties resulted in this aluminum pan. At 7 inches deep, the pan solved the clearance issue nicely.

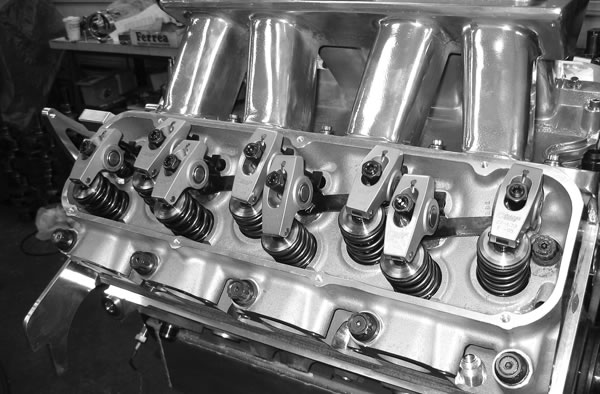

A set of 1.7-ratio Crane Gold Race roller rocker arms and 3/8-inch COMP Cams chromoly pushrods transfer cam motion to the valvetrain.

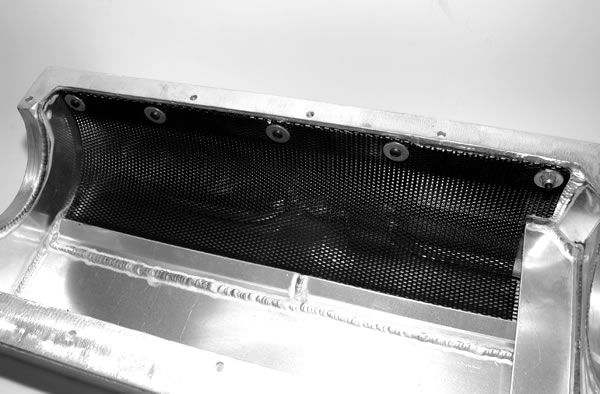

Because there is no oil pump to mess with, Stef’s gave the dry sump pan a full-length, screen style windage tray for oil control. That means extra horsepower due to the increased ability to keep oil off of crankshaft.

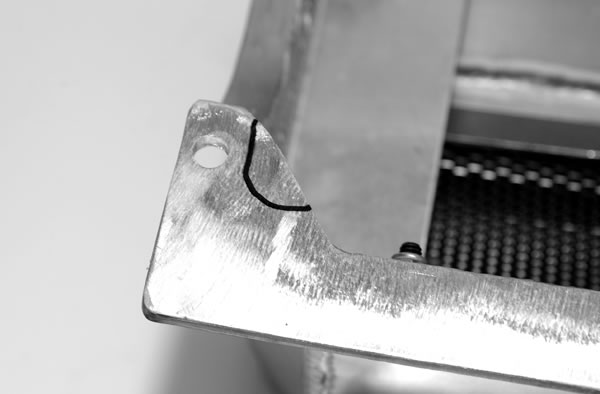

As with most custom applications, the oil pan needed a touch of clearancing to fit—in this case, minor notching to clear the rear main bearing cap as indicated by the black line.

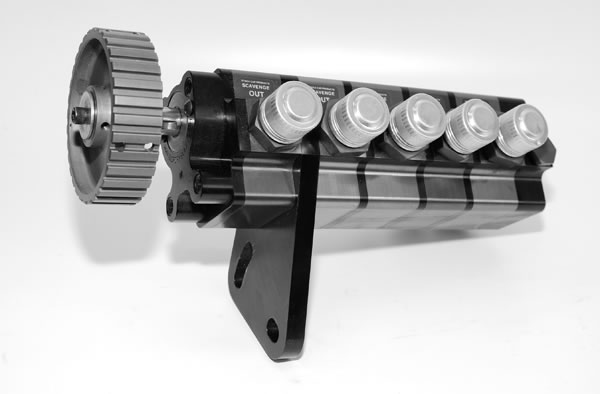

The oil pump is a Stef’s SCP five-stage (three scavenge/two pressure) belt drive unit, plumbed with Earl’s -12 AN braided hose and fittings. The dry sump system not only solved the clearance issues, it will help boost power through reduced oil aeration and superior oil pressure and volume control.

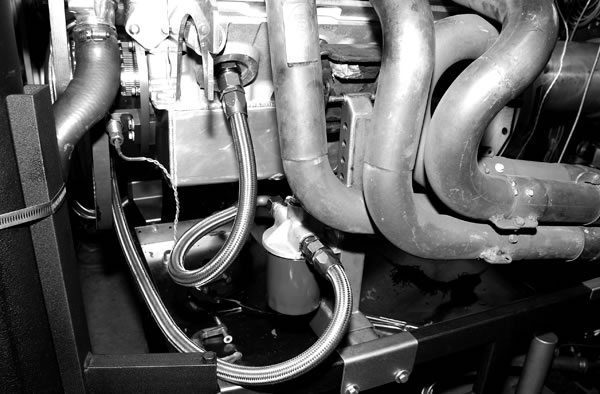

The remote-mount oil filter plumbs into the engine through the block’s oil filter mounting pad fitted with a -12 AN adapter fitting.

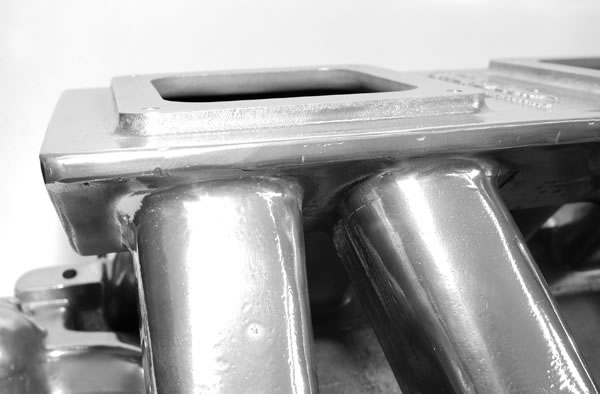

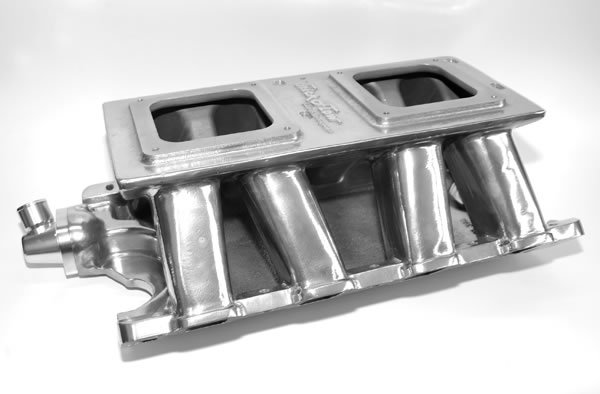

EFI? Bah. Nothing says horsepower like a tunnel ram with a pair of big ol’ Dominators. The Evanuiks chose Trick Flow’s A460 aluminum tunnel ram ’cause it’s designed for big cubic inch, high-rpm engines like the 600. It has bosses for both nitrous oxide and fuel injection, too.

A pair of 1,050 cfm Holley Dominators will perch atop of the modified tunnel ram. The stock cowl was modified to duct cool air to the carburetors. With the air cleaner in place, there is less than half an inch of clearance between the hood and the top of the cleaner!

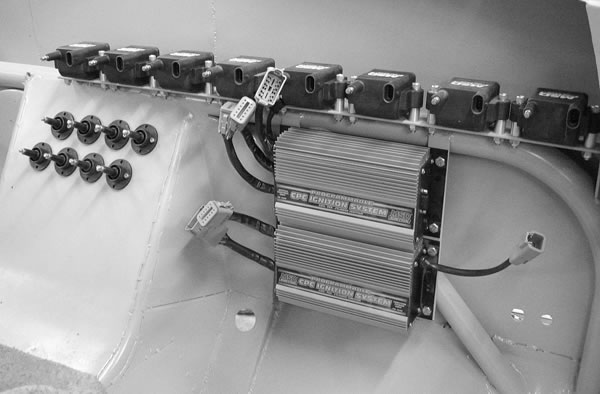

How cool is this—a distributorless, coil-on-plug, digitally controlled ignition system that mounts everything under the dash? The MSD CPC Digital Ignition (MSD-7600, available by special order from Summit Racing) controls the spark; it can be programmed via a laptop PC to adjust individual cylinder timing, vacuum advance, rev limiters, even boost curves for forced induction. The MSD coil packs are mounted to the dash bar, and route the spark to the engine through the bulkhead connectors in the center. The only ignition components under the hood are the MSD crank trigger, the plug wires, and the spark plugs.

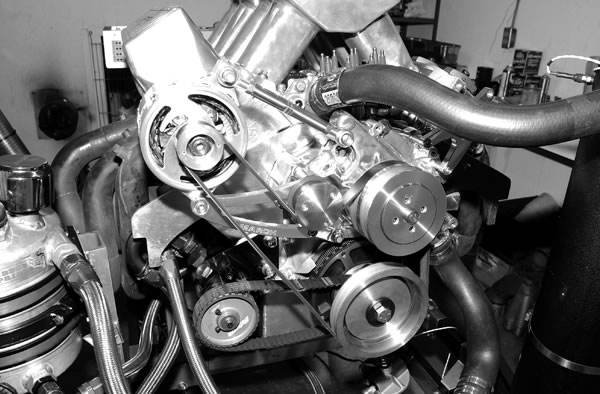

Jim Evanuik Jr. put together a serpentine front accessory drive system using components from Billet Specialties. The only items not mounted in this photo are the A/C compressor and the power steering pump, as they were not required to dyno-test the 600.

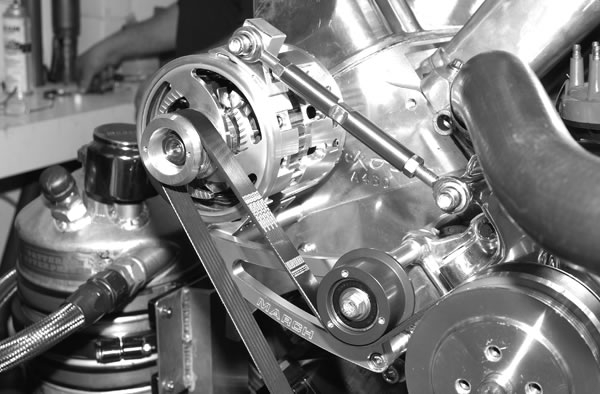

Jim built the trick little idler pulley setup using a March idler. The alternator is one of MSD’s Advanced Power System (APS) units. The 160-amp alternator has a CNC-machined billet aluminum housing, extreme duty windings to handle heavy current loads, dual ball bearings, and an external voltage regulator that can endure high heat conditions.

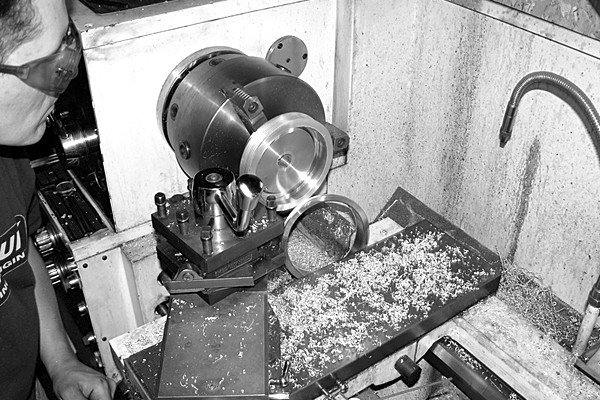

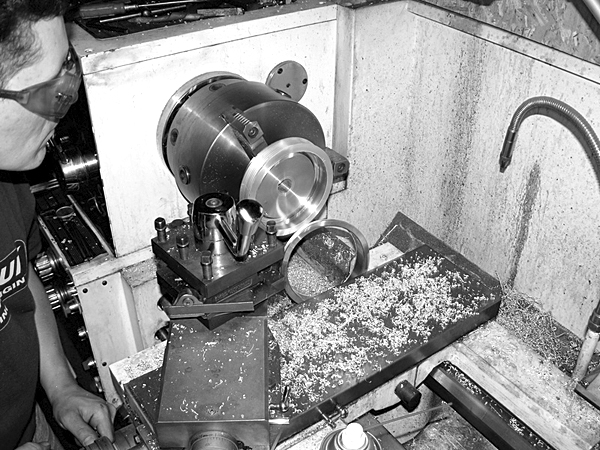

The Billet Specialties crankshaft pulley required some modification to work on Jim’s accessory drive setup. As you can see, it was literally machined in half!

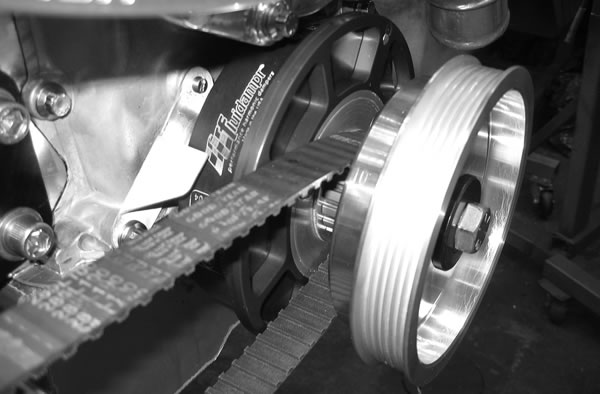

Here’s why the pulley had to be cut down—there’s a lot of stuff hanging of this crank snout. From the back (closest to the block) is a Fluidampr harmonic damper, the MSD crank trigger, the oil pump drive pulley, and the Billet Specialties crank pulley.

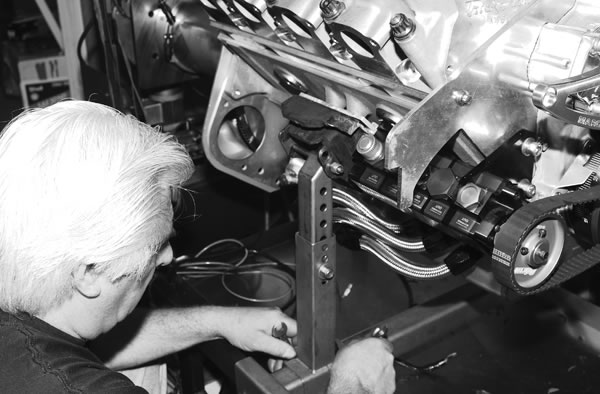

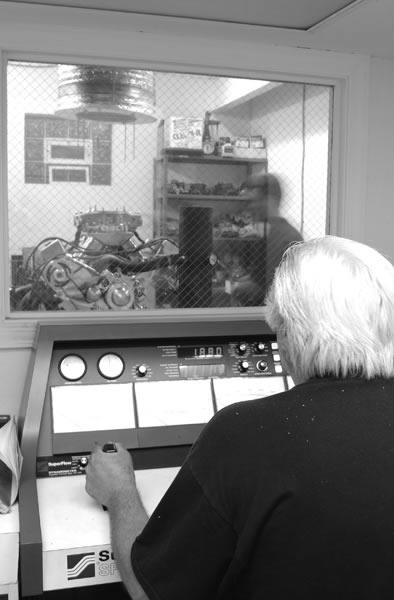

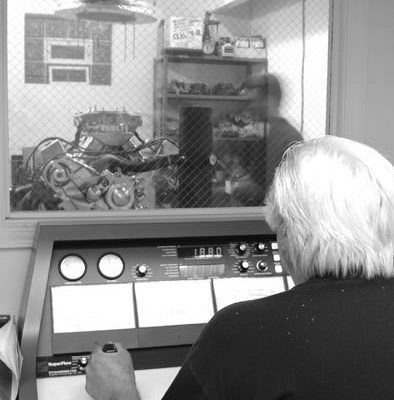

With all of our pieces-parts assembled into a 600 cubic inch whole, it was time to strap the engine on the dyno. Jim Evanuik Sr. improvised some 460 engine mounts to fit the 600 on his dyno stand.

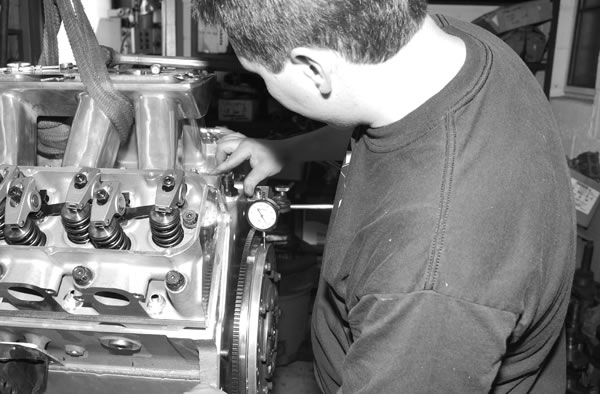

Jim Evanuik Jr. checks the runout on the Hays billet steel flywheel. It was well within tolerance at .002 inches. Hays supplied the clutch disc and pressure plate as well.

The flywheel also required some minor balancing to make it truly neutral balanced. You can see where material was drilled out at the upper left.

Jim Sr. double-checks the engagement pattern and depth of the dyno stand input shaft where it fits into the crankshaft. If the shaft does not engage properly, the result can be a chewed up pilot bearing—or worst case, a busted crank.

With the reservoir filled with oil, the Stef’s oil pump is turned over by hand to prime the engine prior to startup.

The tale of the dyno chart—920 peak horsepower and 810 ft.-lbs. of peak torque. And The torque curve never dipped below 686 foot-pounds from 4,500 rpm on up.
