A vacuum gauge is an invaluable resource for tracking down engine issues.
The key is understanding what your gauge is trying to tell you. We’ve put together this quick-guide to reading your vacuum gauge to help you identify potential mechanical or tuning issues more quickly. We’ve seen this topic covered before, but it’s information worth repeating, keeping—and even bookmarking.
To get started you’ll need to hook your vacuum gauge to an intake manifold vacuum source. You can hook a tee-fitting into an existing vacuum source or pull a line, such as one that leads to your transmission. Check to make sure all vacuum hoses are connected and not leaking.
Once you’re engine is up to operating temperature, you can begin reading your vacuum gauge. Below are some of the most common readings and diagnoses you’ll find:
***
Normal Vacuum Gauge Reading
This a normal reading—between 17 and 22 inches of mercury. Keep in mind, this reading is ideal for stock-cammed engines running at sea level. Higher elevations may cause slightly lower readings. For every 1,000 feet above sea level, you can expect the reading to be about one inch lower. You can also expect the readings to be lower for more aggressive cams.
***
Steady Low/Extremely Low
The gauge above shows an extremely low reading, which holds fairly steady. This means the engine is producing less power and, therefore, less vacuum. Common causes of steady low reading are blowby due to worn piston rings or possibly late ignition or valve timing. An extremely low reading could also indicate an air leak at the intake manifold or throttle body.
***
Steady Low-to-High Needle Swing
A regular swing between high and low readings often means a blown head gasket between two, side-by-side cylinders. To confirm, you’ll need to perform a compression test.
***
Rapid Vibration at Idle
If the needle vibrates rapidly between 14 and 20 inches of mercury, but then steadies as rpm increases, you may be dealing with worn valve guides. How fast the needle vibrates is telling of how many valve guides may be worn.
***

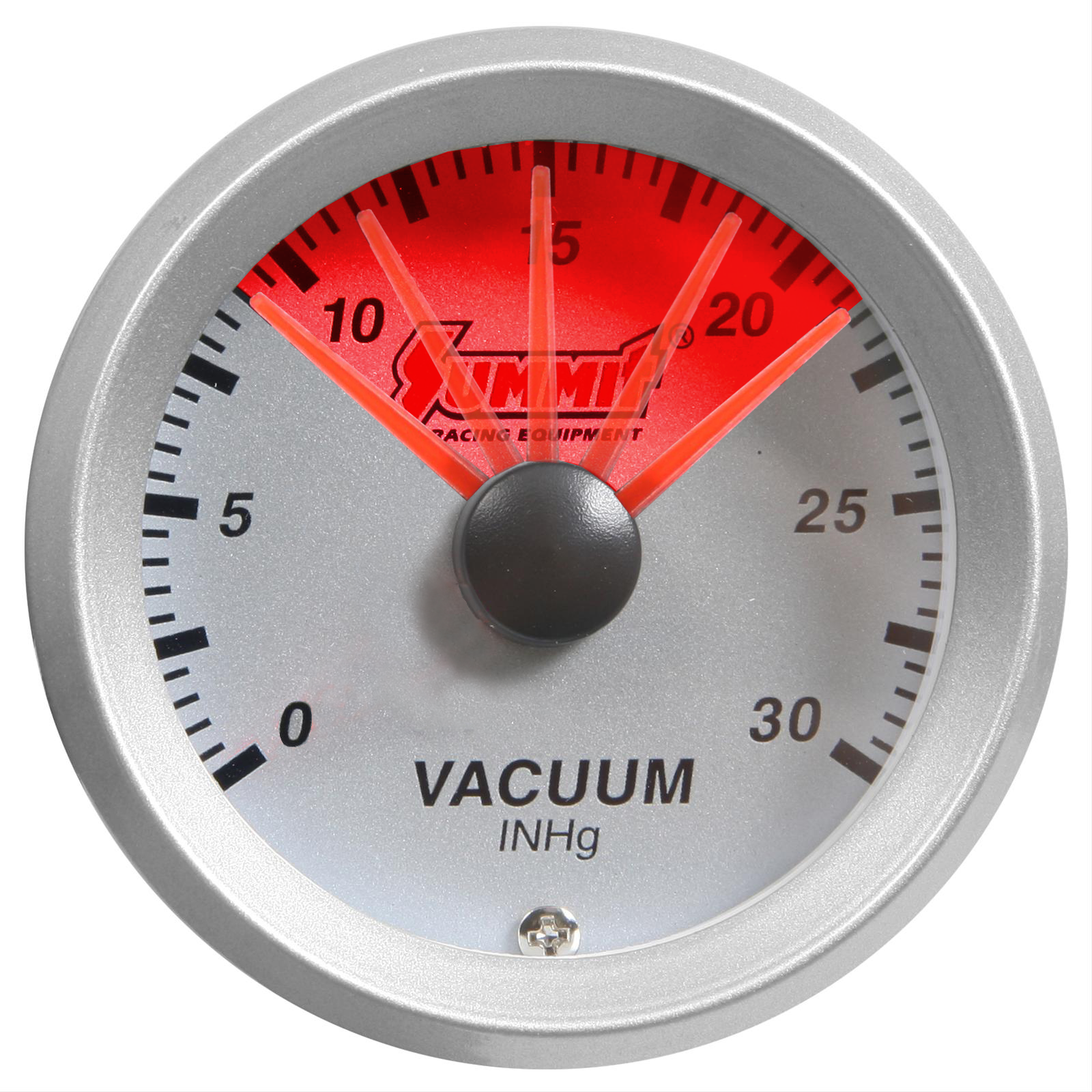

Fluctuation Under Acceleration
Conversely, if the gauge’s needle swings back and forth as the engine accelerates, your valve springs are probably too week for your engine. The swing on the gauge is usually anywhere from 10 to 22 inches of mercury, depending on the speed of the engine.
***

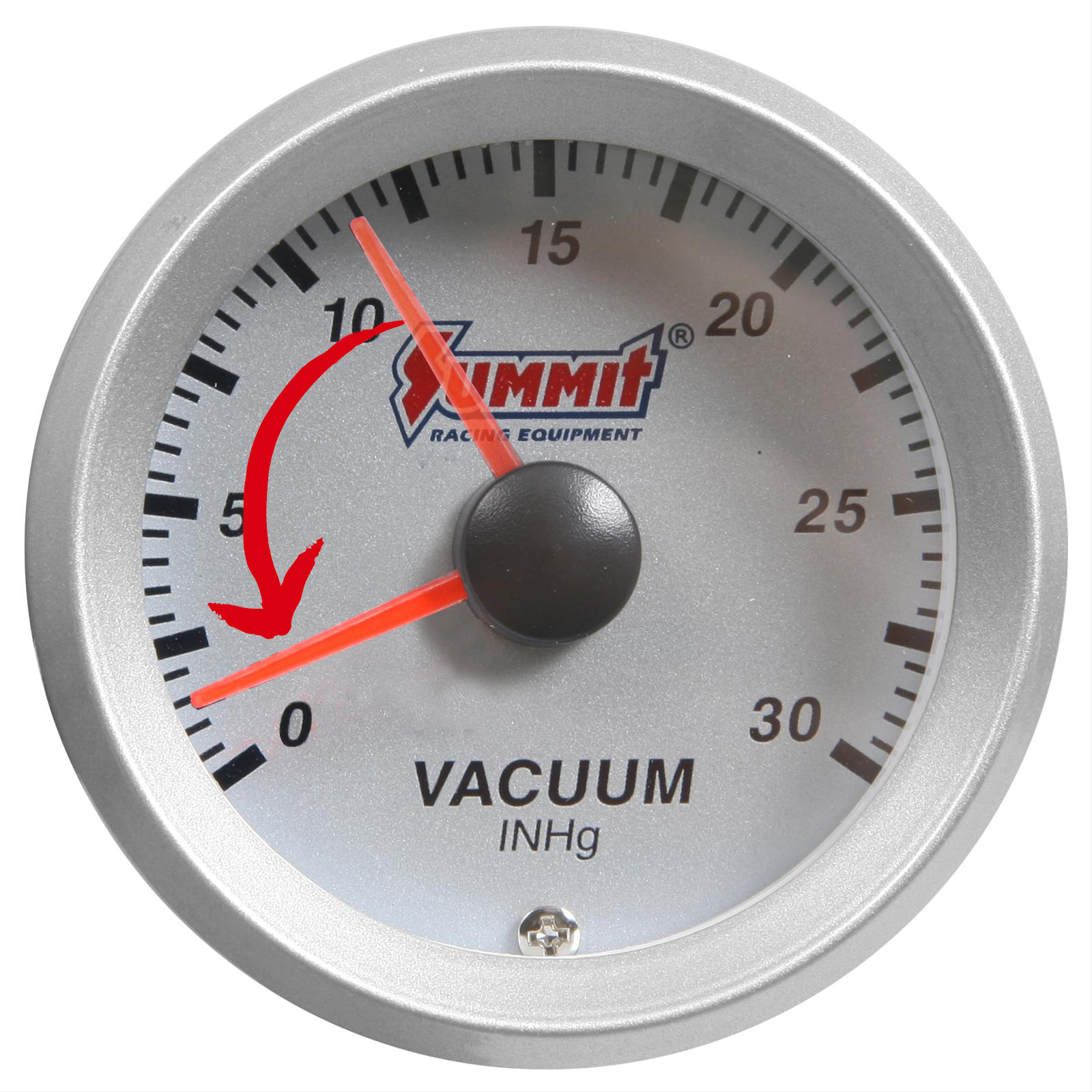

Drastic Needle Drop
With exhaust restriction, the vacuum gauge will often start in the normal range but will soon drop drastically as rpm is increased. You likely have a restriction somewhere within your exhaust system or a damage exhaust component.
***

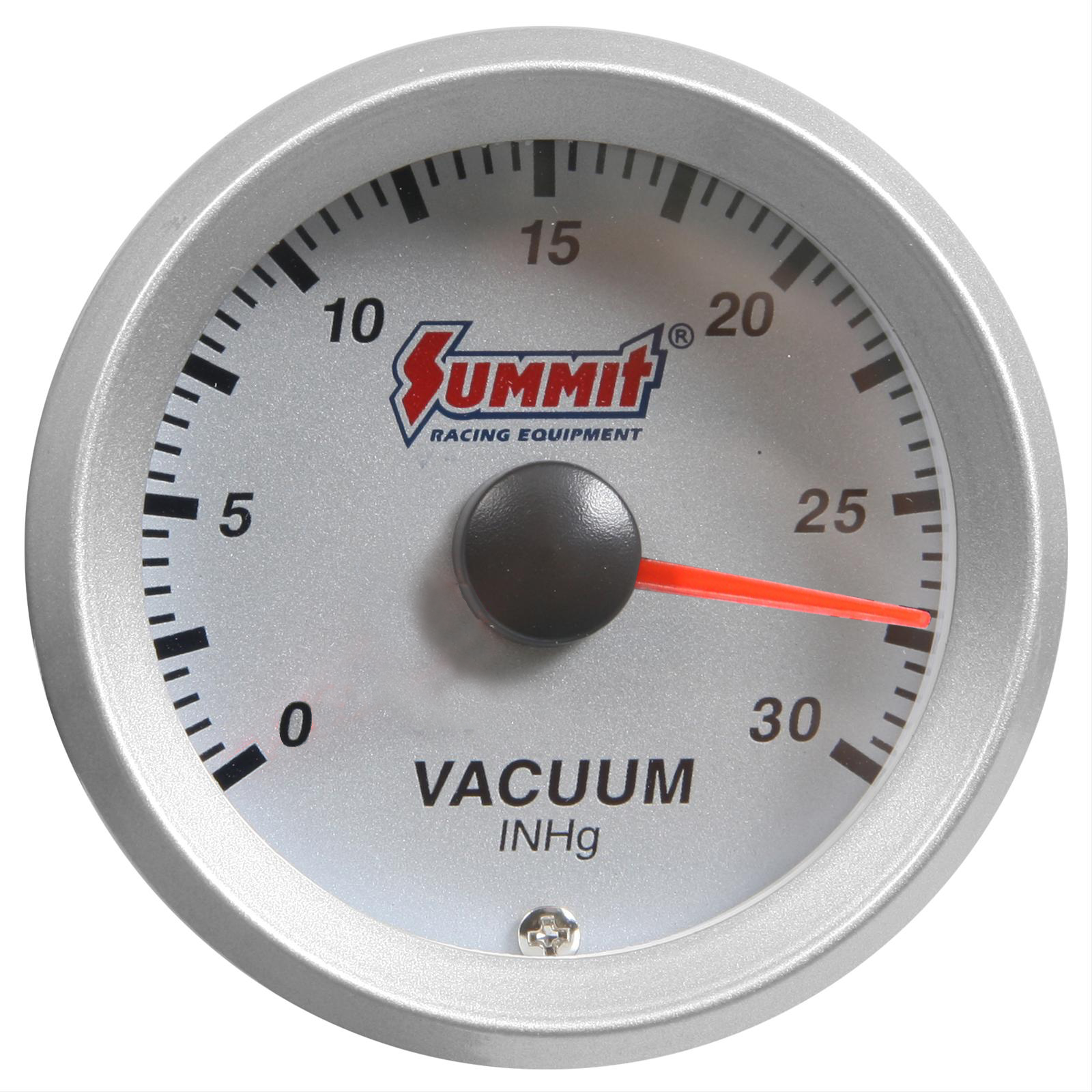

Abnormally High Reading
Conversely, a choked or restricted air cleaner would result in a higher than normal reading, depending on how hard the engine works to pull in air.
***
Normal/Low Pattern
When the needle drops to a low reading, returns to normal, and then repeats the pattern at regular intervals, you’re likely looking at a burnt, sticking, or leaking valve. Often, a sticking valve will cause more sporadic drops during this pattern.
***

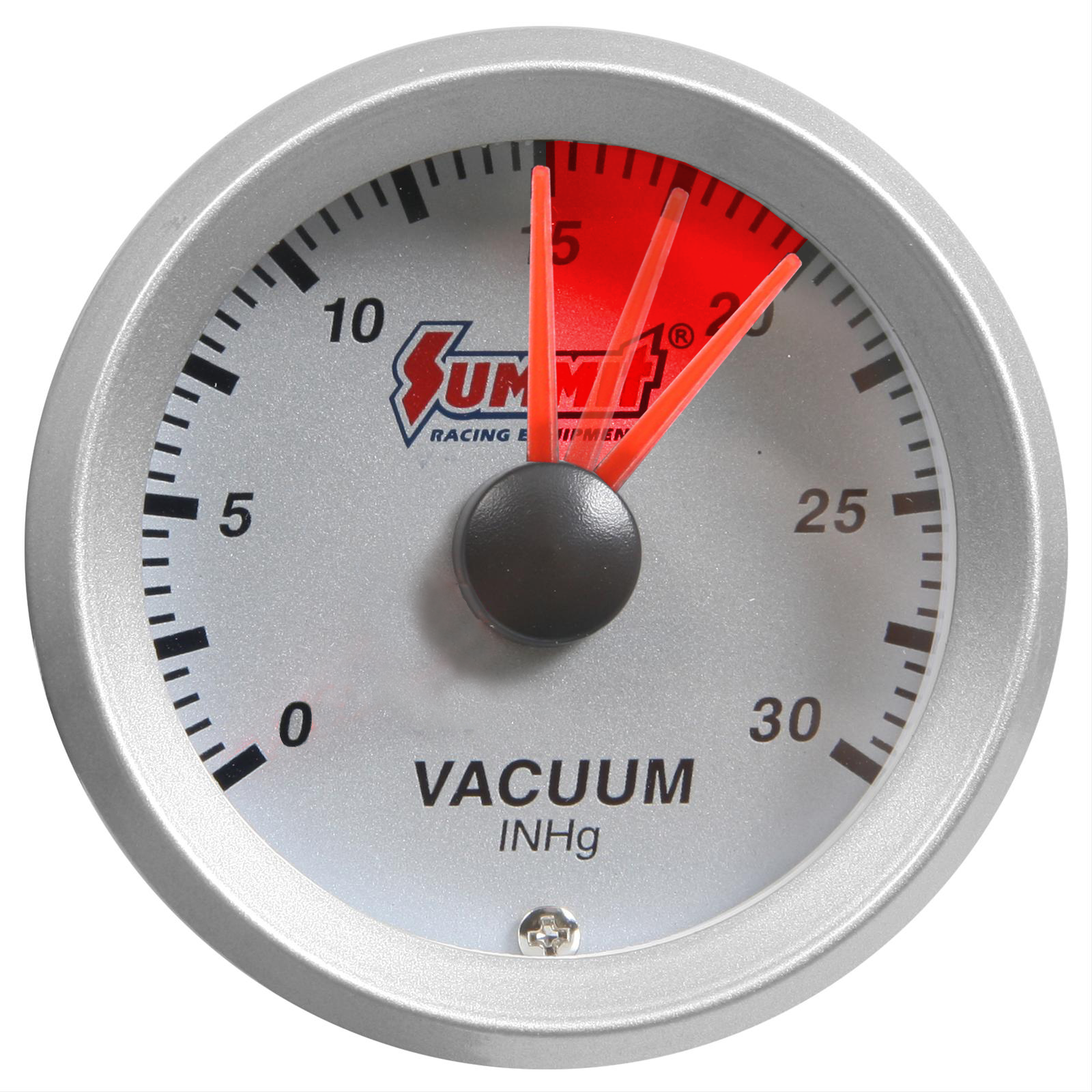

4 or 5 Inch Fluctuation
If you notice the needle slowly fluctuating four or five inches, chances are you have an ignition-related issue. Check your spark plug gap as this condition often indicates too narrow of a gap. Also, check your distributor cap and wires. If none of these areas are the culprit, you may need to adjust your idle mixture.
***
8 to 14 Inch Reading
A steady low reading between eight and 14 inches of mercury is usually indicative of incorrect valve timing.
***
